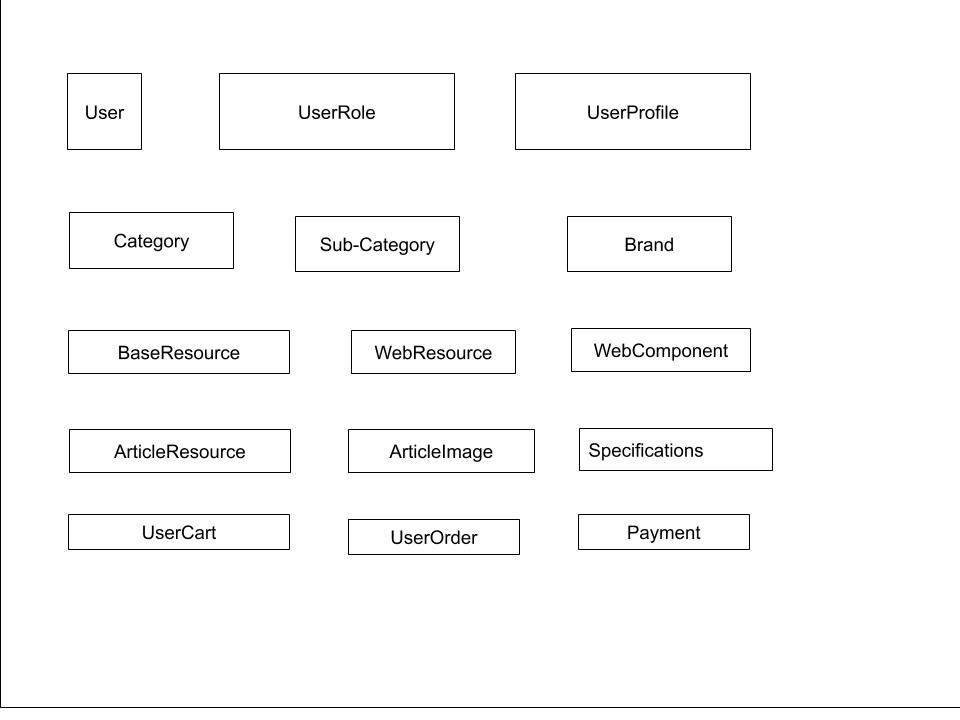

Overview of Components Architecture

User

User component that stores basic info about user. Will use Django default user model.

UserRole

Defines the roles of a user.

UserProfile

Store extra information about user. Like profile picture, address, etc.

BaseResource

Every resource in this system like article(product), web pages, and others if needed, should inherit this component.

WebResource

Web resources are the web pages that will be added in the website.

WebComponent

These are the components that will be displayed in the website. Each WebResource will include one or many of these components.

ArticleResource

These are used if the website is an e-commerce. They are basically the products that will be displayed in the website.

ArticleImage

These are the images of an article. There may be multiple images for a single article.

Specifications

These are the specifications of an article. It will be divided into three blocks: SpecificationTitle, SpecificationContent, ArticleSpecification.

UserCart

Store the cart information of a user

Order

Orders placed by User.

Payment

Information about the payment systems integrated in the system.

Category

Categories of articles.

SubCategory

Sub-categories of a category

Brand

Brands of Articles which the vendor can provide.
